Description

Nextflow is a reactive workflow framework and a programming DSL that eases writing computational pipelines with complex data
Software Category: tools

For detailed information, visit the Nextflow website.

---

Available Versions

The current installation of Nextflow incorporates the most popular packages. To find the available versions and learn how to load them, run:

module spider nextflow

The output of the command shows the available Nextflow module versions.

For detailed information about a particular Nextflow module, including how to load the module, run the module spider command with the module’s full version label. For example:

module spider nextflow/25.04.6

Module	Version	Module Load Command
nextflow	25.04.6	module load nextflow/25.04.6

---

Nextflow workflow:

• Nextflow is a workflow management system used to create reproducible and scalable data analyses
• Workflows are written in Groovy and can be deployed in parallel on the HPC system
• Workflows can be executed with modules or containerized environments: Conda or Apptainer

Nextflow processes:

• Workflows are defined in processes

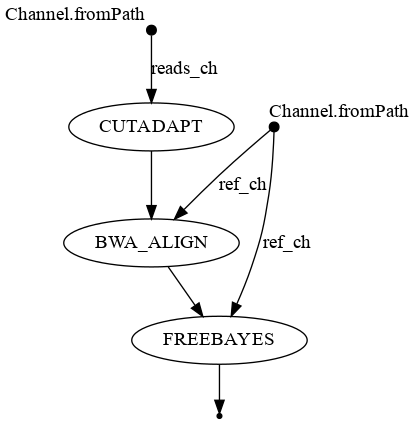

• Dependencies between the processes are determined when defining a workflow, creating a DAG (directed acyclic graph) of jobs that can be parallelized

nextflow.config file:

Config files are generally for

• params: workflow parameters (like input filenames, paths, job settings) processes to define global or process-specific options, or profiles.
• processes: additional processes specifying global and/or per-process settings, software environments, profiles, and job settings
• profiles: specify a commonly used collection of settings/parameters

params {
    reads   = 'sample1.fastq'
    adapter = 'AACCGGTT'
    ref     = 'GCF_000005845.2_ASM584v2_genomic.fna'
    outdir  = 'results'
}

process {
    executor = 'slurm'
    queue = 'standard'
    clusterOptions = '--account=my-hpc-allocation'

    withName: CUTADAPT {
        cpus = 2
        time = '4h'
        mem = '8 GB'
        beforeScript = '''
        module purge
        module load cutadapt
        '''
    }

    withName: BWA_ALIGN {
        cpus = 2
        time = '4h'
        mem = '8 GB'
        beforeScript = '''
        module purge
        module load bwa
        module load samtools
        '''
    }

    withName: FREEBAYES {
        cpus = 2
        time = '4h'
        mem = '8 GB'
        beforeScript = '''
        module purge
        module load freebayes
        '''
    }
}

main.nf:

• The main.nf contains the processes of your workflow (the steps)
• Your workflow will determine the order of the processes in order to create that output
• Each process generally has at least a script, input, output consists of 3 required parts: the input files, the output files, and the shell (command)
• Below is an example of a process to align sequences using hisat. The log and threads options are optional, but included for reference
• The target output is a gene count matrix in a csv format

process CUTADAPT {

    publishDir params.outdir, mode: 'copy'

    input:
    path reads

    output:
    path "${reads.simpleName}_trimmed.fastq"

    script:
    """
    cutadapt -a ${params.adapter} -o ${reads.simpleName}_trimmed.fastq $reads
    """
}

process BWA_ALIGN {

    publishDir params.outdir, mode: 'copy'

    input:
    path reads
    path ref

    output:
    path "${reads.simpleName}.bam"

    script:
    """
    bwa index $ref
    bwa mem $ref $reads | samtools sort -o ${reads.simpleName}.bam
    """
}

process FREEBAYES {

    publishDir params.outdir, mode: 'copy'

    input:
    path bam
    path ref

    output:
    path "${bam.simpleName}.vcf"

    script:
    """
    freebayes -f $ref $bam > ${bam.simpleName}.vcf
    """
}

workflow {
    reads_ch = Channel.fromPath(params.reads, checkIfExists: true)
    ref_ch   = Channel.fromPath(params.ref, checkIfExists: true)

    trimmed_ch = CUTADAPT(reads_ch)
    bam_ch     = BWA_ALIGN(trimmed_ch, ref_ch)
    FREEBAYES(bam_ch, ref_ch)
}
``'
# Slurm for Nextflow:

- The Nextflow pipeline can be executed using a `SLURM` script on the HPC system
- Below is an example script to submit your main controller script to the standard partition with 1 core




#!/bin/bash

#SBATCH --time=05:00:00
#SBATCH --partition=standard
#SBATCH --mem=4GB
#SBATCH --account=allocation_name
#SBATCH --cpus-per-task=1

module purge
module load nextflow

nextflow run main.nf



# Dry Runs:

- Dry-runs are a great way to check your commands before running them
- The code is printed, but not actually run
- For a dry run, use `nextflow run main.nf -dry-run`
